Color coated aluminum coil
Quick Details
Quick Details
Place of Origin: Hunan, China
Brand Name: HUABOND
Model Number: H-C121
Application: Machinery, Roofing, Industry, Decoration, Construction, Building, ACM
Alloy or Not: Alloy
Surface Treatment: Coated
Coil weight: 1-3tons
Thickness: 0.1mm - 2.0mm
Width: 50 - 1500mm
Temper: O - H112
Main grade: 1050 H24, 2024 T3, 5052 H32, 6061 T6, 7075 t6, 8011 O
PE Coating: Over 18 micron thick
PVDF Coating: Over 25 micron thick
Main uses: Curtain wall, Aluminum composite board, car body
More Processing: Mirrored polish, Brushed, Embossed
Colors: White, Gold, Red, Blue, Black and others
Coatings: PE, PVDF, FEVE, HDPE
Sample: Free samples
Supply Ability: 25000 Metric Ton/ Per Month aluminum painted coil

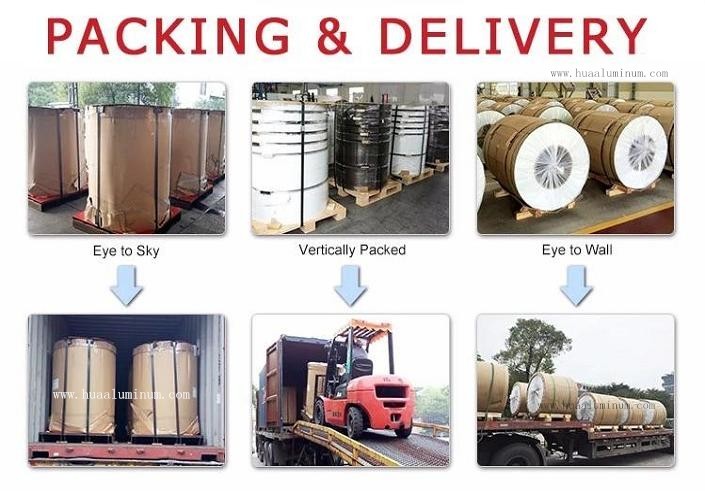

Packaging Details: Standard seaworthy exporting carton,wooden pallets. Waterproof paper and plastic craft coverage.
Or as per customer's requirements.
Load of container: 20ft container can load 20 tons, 40ft container can load 25 tons for your reference.
Port: Shanghai ports in China
Lead Time: 18-22days
■ Full Data
This series aluminium coil provided by Huabond includes 1100, 1050 and 1070 series.
♦ material:1050 1060 1070 1100 1200 1235 etc.
♦ temper:h16 h18 h24 h32
♦ thickness:0.2-1.0mm
♦ width:30-1300mm
♦ packing: eye to wall, eye to sky
♦ use: roof ,celling, computer, light channel, led, etc.
♦ Tensile strenth:55-95Mpa
Applications of 1100 Series Aluminum Coil
This series aluminum strip can be used to process parts which require good forming property and high anti-corrosion, but do not require high strength, such as chemical products, devices and storage containers used in the food industry, heat exchangers, welding parts, etc.
Feature of 1000 Aluminum Coil
Low strength aluminum alloy has excellent corrosion resistance and satisfactory anodizing and conversion coating finishing characteristics. It is unmatched by any other commercial aluminum alloy in workability. Readily to welding, brazing, and soldering. Machinability is poor and tends to be "gummy". Non-heat treatable.
| TOLERANCE |
| Major Brand | A1060(O) A1050(O) |
| Thickness | 0.2-0.4 | 0.4-0.8 | 0.9-1.1 | 1.2-1.6 | 1.8-2.0 |
| tolerance | ±0.01 | ±0.015 | ±0.02 | ±0.025 | ±0.03 |
| Width | <100 | 100-200 | 201-500 | 501-1250 | >1250 |
| tolerance | ±0.1 | ±0.2 | ±0.2 | ±1 | ±2 |
| BURR AND COLLAPSE |
| The width of aluminum belt | burr’s height | collapsed side’s height |
| <0.2 | 0.01 | ≥0.05-0.1 |
| 0.2-1.0 | 0.015 |
| 1.1-1.5 | 0.02 |
| >1.6 | 0.03 |
| MECHANICAL PROPERTY |
| U.T.S: 60-95N/mm2 | Elongation: >25% |
| Density in 20°C :2.703kg/dm3 | Max. resistance in 20°C:≤0.02825Ωmm2/m |
Product Tags:
|
|
